LATH MACHINE - Gildemeister GMC 35 ISM Description

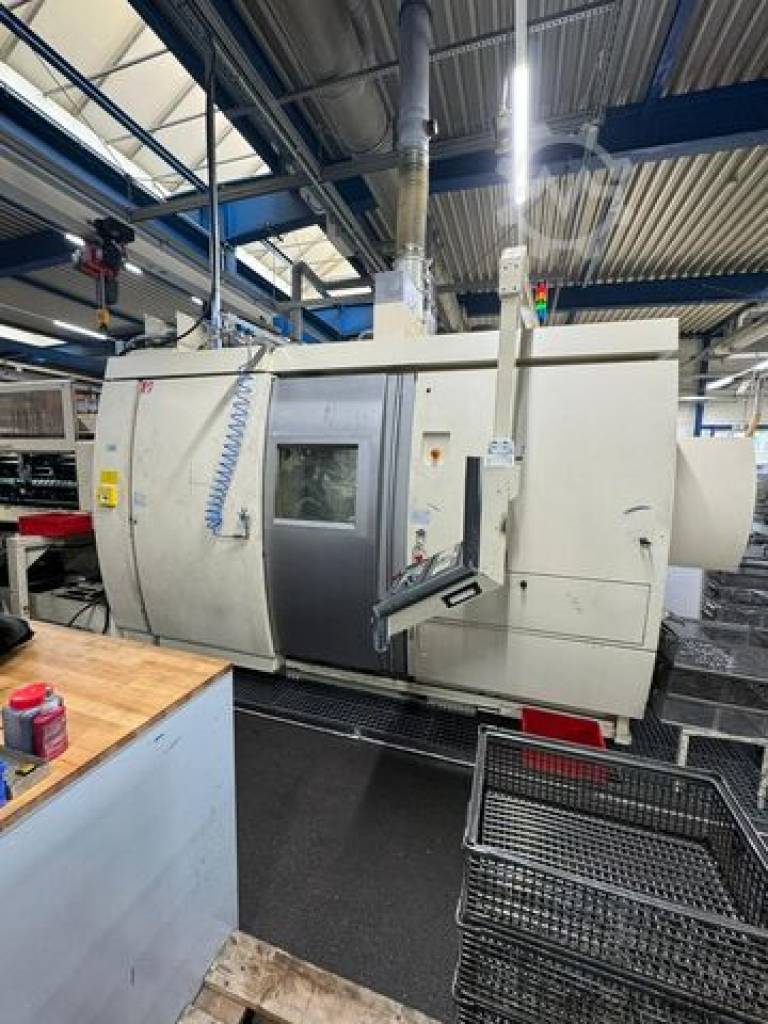

LATH MACHINE - Gildemeister GMC 35 ISM
Description
Ref. -No.: 10402
Manufacturer: GILDEMEISTER
Type: Gildemeister GMC 35 ISM
Year of construction: 2006
Type of control: CNC
Control: SIEMENS SINUMERIK 840D PowerLine
Storage location: Halberstadt
Country of origin: Germany
Machine-No.: 5702-0027
work spindles: 6
Turning Speeds: 6300 RPM
C-Axis: Ausricht- und Schalteinrichtung
Spindle passage: 32 mm
Spindle power: 6 x 4 kW
Capacity At 100% Load: 6 x 4 kW
Max. Torque: 6 x 15 Nm
Rapid Travel Speed X-Axis: 12 m / min
Laebx Riowudl Te Tpvoc
Rapid Travel Speed Z-Axis: 12 m / min
Travel -X Axis: 68/100 mm
Travel -Z Axis: 68/100 mm
Machine length: 7000 mm
Machine width: 1800 mm
Machine Height: 2400 mm
Connected Load: 107 kVA
Further information:
Features:
5 cross slides for machining in X and Z
Pick-up spindle freely programmable in position 6
5 front spindles of which 5 can be driven
4 U-axes electrically prepared
1 axis for back machining on the pick-up spindle
Kraft and Bauer CO² fire extinguishing system
Hinged belt chip conveyor
Artis tool breakage control
Tool carrier:
Number: 12
Axes X/Z: 68/100 mm
Rapid traverse X/Z: 12 m/min
Tools for backworking: 1
Bar loading magazine:
IEMCA Sir 36P; type 33 F
Year of manufacture 2006
Serial number 020440MA04
Bar length 3000mm
Knoll high pressure system AE1114:
Year of construction 2006
Filter system
Pumps 5Bar and 40Bar individually adjustable for the processing steps
Heat plate exchanger
Lifting pump from the chip conveyor
