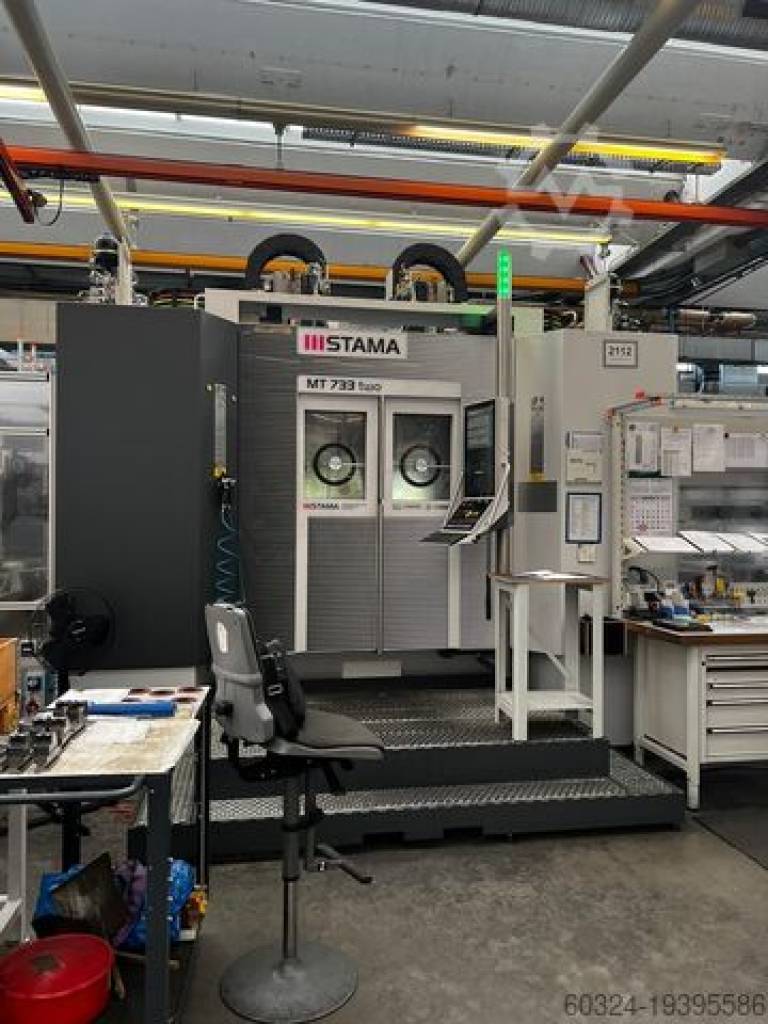

LATH MACHINE - MT 733 two plus

Information

LATH MACHINE - MT 733 two plus Description

LATH MACHINE - MT 733 two plus

Description

Ref. -No.: 10372
Manufacturer: STAMA
Type: MT 733 two plus
Year of construction: 2021
Type of control: CNC
Control: SINUMERIK Siemens 840 D sl
Storage location: Halberstadt
Country of origin: Switzerland
Turning Speeds: 4200 RPM
Spindle Speeds: 12500 RPM
Tool Taper: HSK T-63
Workpiece Length: 300 mm
X-axis travel: 615 mm
Y-axis travel: 290 mm
Z-axis travel: 500 mm
Max. Tool Weight: 10 kg
Max. Tool Diameter: 78 mm
Max. Tool diameter with 2 free spaces: 140 mm
Spindle bearing diameter: 80 mm
Lsbx Ri Tpewt Sacsvjac
Number of tools in the chain magazine: 64
Max. Rapid traverse: 65 m / min
Max. Feed force: 4000 N
Max. Feed force: 8000 kN
Acceleration (X): 7 m/s²
Acceleration (Y): 9 m/s²
Acceleration (Z): 13 m/s²

Further information:
- Ball screw
- Automation
- Workpiece loading/unloading chuck parts with X- / Z- gantry loader
- Clamping pressure preselection 15 - 50 bar for both spindles
- Buffer station for constant short chip-to-chip times
- NCU High Performance NCU 730.3.m
- Magnetic gripper
