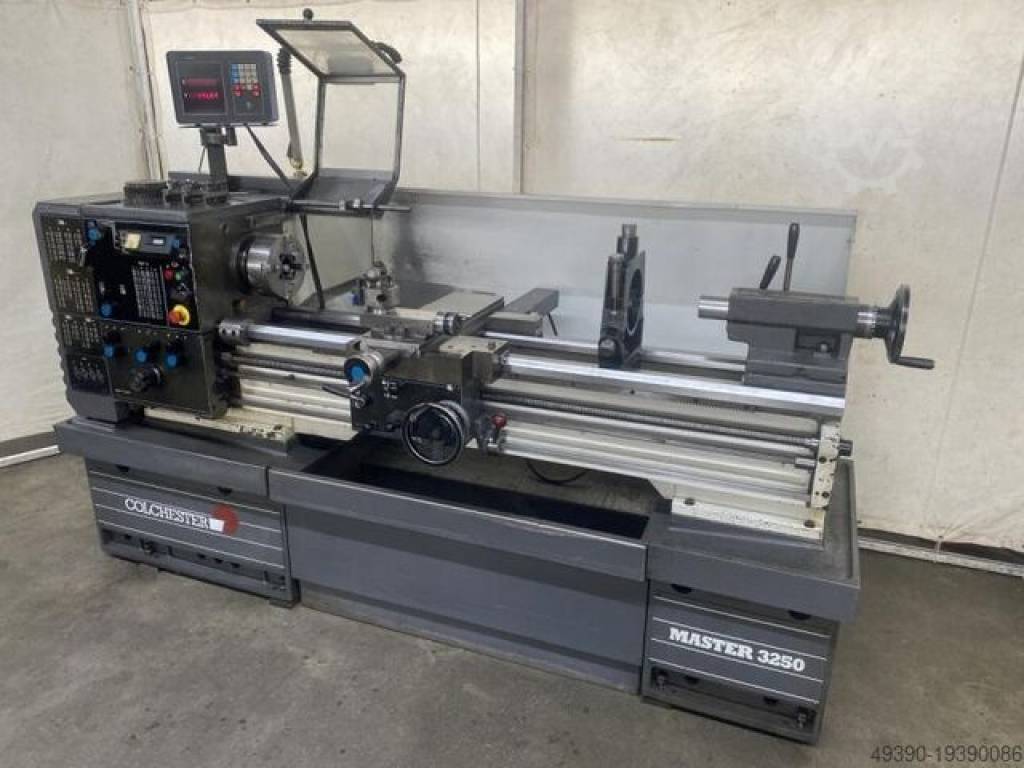

LATH MACHINE - Master 3250

L + Z Lathe COLCHESTER Model Master 3250
Machine No. LVM 50SMR JA Year of manufacture approx. 2000
Centre distance 1250 mm
Swing over bed 360 mm
Swing over cross slide 190 mm
Centre height over bed 180 mm
Centre height over cross slide 95 mm
Spindle bore 42 mm
Spindle speed 20 to 340 / 55 to 1010 / 160 to 3250 rpm, 3 speed ranges
Feeds longitudinal and facing
Tailstock taper MT 4
Chuck flange short taper DIN 55029 D1-4 Camlock Ø 63 mm
Drive power 7.5 kW
Connected load 400 Volt, 50 Hz
- 2-axis digital readout FAGOR, type ML 215
- Spindle speed adjustable via 3 gearbox ranges and steplessly via frequency inverter
- 4-jaw chuck Ø 200 mm with stepped jaws (in poor condition)
- PARAT quick-change toolholder with 4 tool cartridges
- Coolant system
- Splash guard at the rear of the machine
- Hinged chuck guard
- Machine lamp
- Fixed steady rest Ø 160 mm
- Operating manual
Dimensions L x W x H 2500 x 1100 x 1750 mm
Weight 1620 kg
