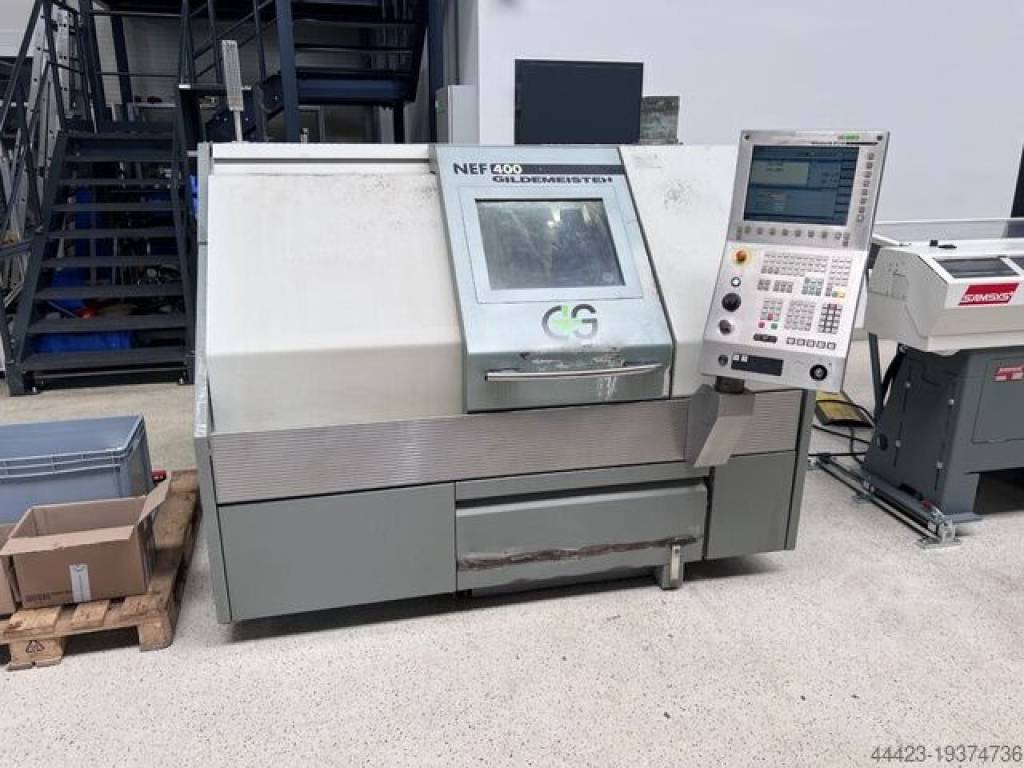

LATH MACHINE - NEF 400 Description
LATH MACHINE - NEF 400
Description
_____
Description:
Year of manuf. : 2004
Control : Siemens 840D - Powerline
Turning diam. : 350 mm
Turning length : 650 mm
Mainspindle:
Technology:Belt-driven spindle
Speed (max.):4.000 rpm
Power (max.):15,3 kW
Torque (max.):400 Nm
Barcapacity:50 mm
Workpiececlamping:3-Jaw chuck, ø200 mm
Toolcarrier I (X/Z):
Technology:Turret with 8 stations
Taper:VDI30
Lebx Ri Tpowtkyusvjac
Movement in X/Z:220/700 mm
Rapid travers in X/Z:15 m/min
Tailstock:
Technology:Towed Tailstock with hydraulic driven Sleeve
Cone:MK4
Sleeve-ø:65 mm
Stroke:40 mm
Equipment/Accessory:
Chipmanangement:Chip tray
Coolingmanagement:Coolant pump
Oilmistseparation:Mechanical prepared
Further Acessory:Misc. Toolholder and clamping jaws
