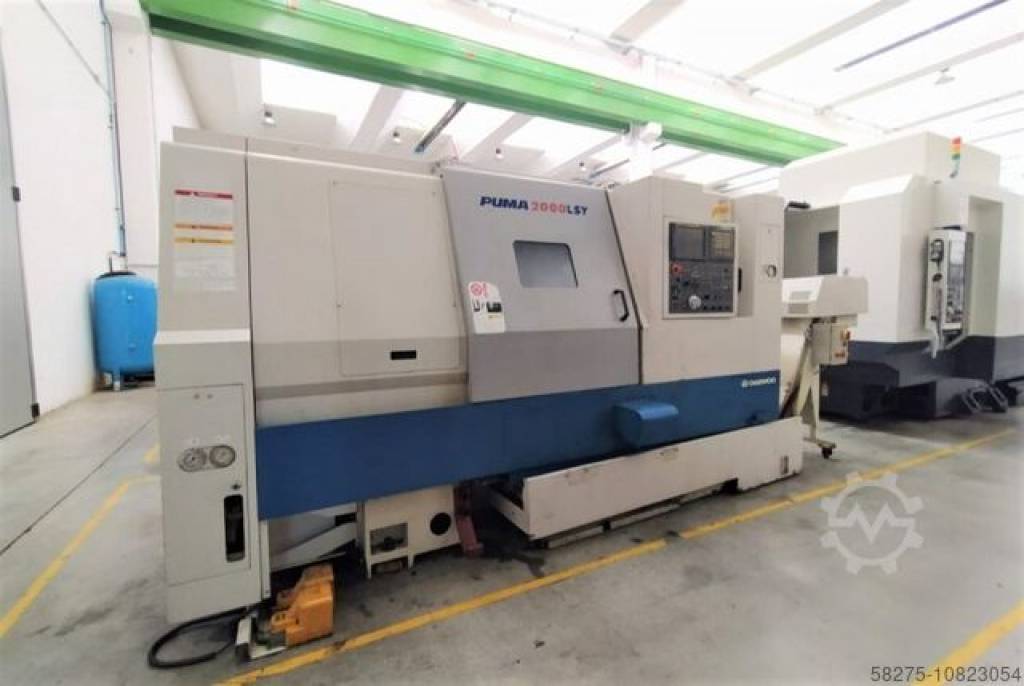

LATH MACHINE - PUMA 2000 LSY Description
LATH MACHINE - PUMA 2000 LSY
Description
- USED - 5-AXIS CNC LATHE
MAX TURNING LENGTH: 760 mm
Lebommlprex Ri Tpvjac
MAX TURNING DIAMETER: 330 mm
BAR CAPACITY: 65 mm
SPINDLE: 4500 rpm; 11-15 kW; ASA A2-6 ; 210 mm
COUNTER SPINDLE: 6000 rpm; 5,5-7,5 kW; 169 mm
X-AXIS TRAVEL: 250 mm
Y-AXIS TRAVEL: ± 50 mm
Z-AXIS TRAVEL: 830 mm
B-AXIS TRAVEL: 830 mm
RAPID FEEDS X-Y-Z: 24 - 7,5 - 20 m/min
DRIVEN TURRET HEAD: 12 POS; 6000 rpm
CONTROL UNIT: FANUC 18i-T
WEIGHT: 5350 Kg
OVERALL DIMENSIONS: 3500 x 1700 x 2060 mm
ACCESSORIES: SWARF CONVEYOR ;
TOOL SETTER
NOTE: PART CATCHER WITH BELT; AUTOMATIC DOOR OPENING SYSTEM
