LATH MACHINE - SA-263 Description

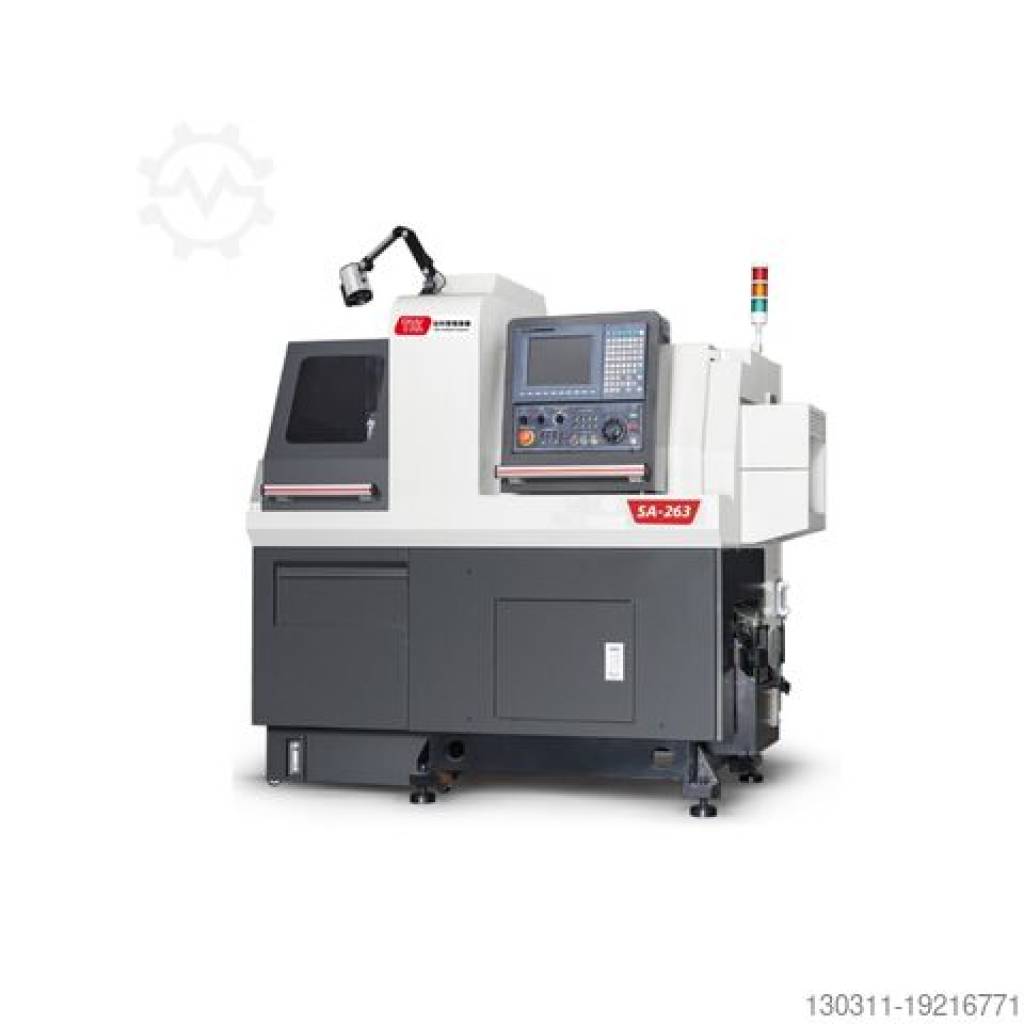

LATH MACHINE - SA-263
Description
Machine Overview
Lebxewmrpds Ri Tpvoac
Type: Swiss-Type Sliding Head CNC Lathe
Max Machining Diameter: 26 mm
Main Stroke: 255 mm (Guide Bushing), 2.5D (No Guide Bushing)
Tooling
Turning Tools: 6 (12 mm square)
Front Face Tools: 5
Cross Tools: 5 (ER16)
Drilling: up to 8 mm
Tapping: M6 × 1.0
Milling: up to 10 mm
Slotting: 1.5 mm wide × 4 mm deep
Speed: 6000 rpm
Motor: 1.0 kW
Main Spindle
Speed: 10,000 rpm (7000 rpm with guide bushing)
Motor Power: 2.2 / 3.7 kW
Indexing: C-axis control (0.001°)
Through-Hole: 27 mm
Movement & Speed
Rapid Traverse (X, Y, Z1): 32 m/min each
Machine Size & Power
Dimensions: 1900 × 1300 × 1780 mm
Weight: 2000 kg
Coolant: 170 L tank, 0.4 kW motor
Standard Accessories
CNC Control: SYNTEC 200TB with 10.4" color LCD
Chucking sleeves (main/sub), synchronous guide bushing
6 external turning tools, C-axis control, main chuck
5 transverse rotating tools (3 ER16, 2 ER11)
I.D. tool holder, lubrication system, separate tanks (oil/chips)
Safety: RCD, air seals, signal lamp, LED light
