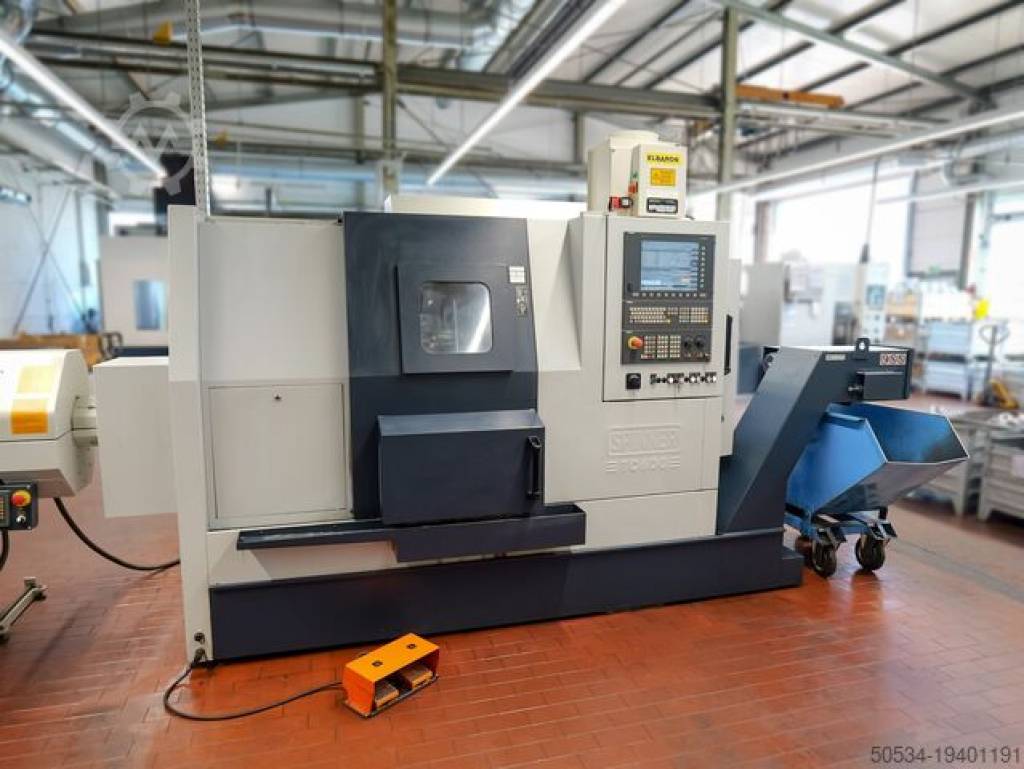

LATH MACHINE - TC600-65SMCY Description
Description
Control: SIEMENS 840D-Solution Line
Travel Paths
Travel path X-axis: 275mm
Travel path Z-axis: 700mm
Travel path Y-axis: 90 (+50 / -40) mm
Main Spindle
Max spindle speed: 4,000 rpm
Spindle bore: 66mm
Drive power 60% duty cycle: 18 kW
Torque 60% duty cycle: 348 Nm
Counter Spindle
Max spindle speed: 6,000 rpm
Spindle bore: 42mm
Tool turret with 16 driven tools
Chip conveyor
Short bar magazine SPINNER Servo 80-1500
Laobxowuctie Ri Tpvec
Equipped with:
C-axis for both spindles
Software for face and peripheral machining
Turning spindle as integrated motor spindle with water cooling
Electrical interface for connection to bar feeders
Coolant system
Pneumatic equipment
Glass scale on X-axis
Extraction fan with electrostatic air cleaner
Parts catcher with pick-up arm and chute
