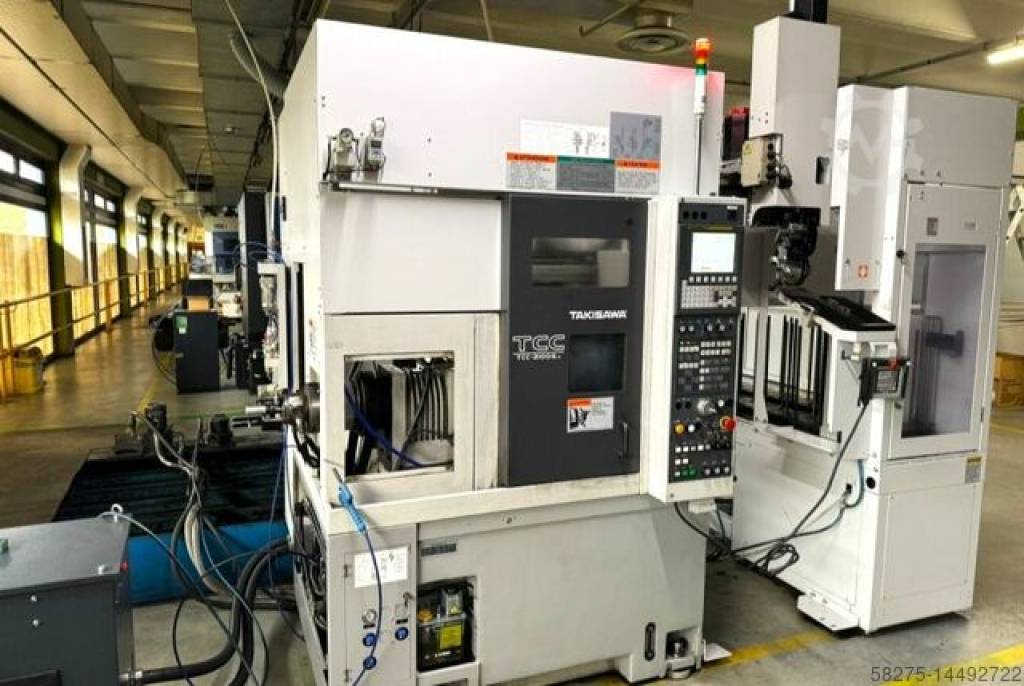

LATH MACHINE - TCC 2100 GL3

Information

LATH MACHINE - TCC 2100 GL3 Description

LATH MACHINE - TCC 2100 GL3

Description

- USED- 2-AXIS CNC LATHE
MAX ROTATING DIAMETER: 420 mm
MAX TURNING LENGTH: 291 mm
MAX TURNING DIAMETER: 320 mm
SPINDLE: 3200 rpm; 7,5-11 kW
X-AXIS TRAVEL: 190 mm
Z-AXIS TRAVEL: 350 mm
Lebx Ri Tpsq Ilbwjvjac
RAPID FEEDS X-Z: 24 - 30 m/min
TURRET HEAD: 12 POS
CONTROL UNIT: FANUC 0i-TF
WEIGHT: 3500 Kg
OVERALL DIMENSIONS: 2214 x 2220 x 2713 mm
ACCESSORIES: SWARF CONVEYOR ;
PORTABLE HANDWHEEL
NOTE: WITH 16-POSITIONS GANTRY-TYPE LOADING SYSTEM

LATH MACHINE - TCC 2100 GL3
