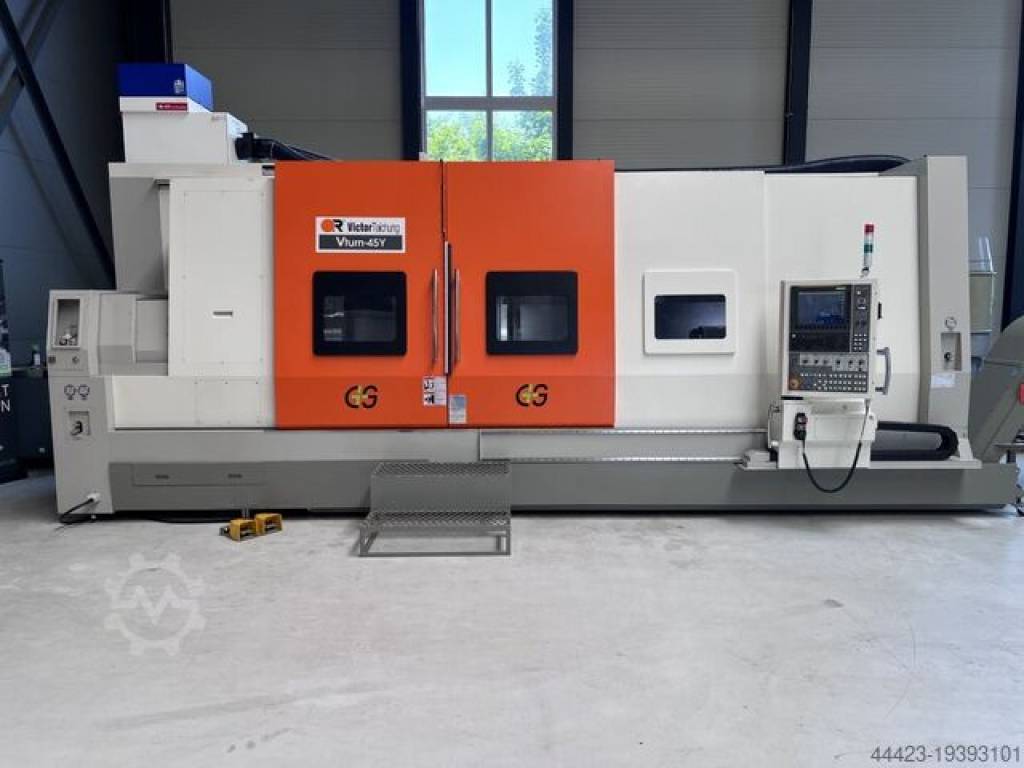

LATH MACHINE - Vturn-45 Y

Information

LATH MACHINE - Vturn-45 Y Description

LATH MACHINE - Vturn-45 Y

Description

_____

Description:
Year of manuf. : 2022
Control : Fanuc 0i-TF
Turning diam. : 580 mm
Turning length : 3250 mm

Mainspindle:
Technology:Belt-driven spindle with Gearbox
Speed:1.000 rpm
Power (max.):45 kW
Torque (max.):4.008 Nm
Barcapacity:205 mm
Workpiececlamping I:3-Jaw chuck, Autogrip AP-230 ø535 mm
Lasbx Ri Tjwt Iwqepvec
Workpiececlamping II:Manual 3-Jaw chuck, Chandox SK20 (Rearside Spindlehead)

Toolcarrier (X/Y/Z):
Technology:Turret with 12 stations
Taper:BMT 75
Tooldrive:3.000 rpm, 7 kW, 83 Nm
Movement in X/Y/Z:340/160/3.250 mm
Rapid travers in X/Y/Z:20/7/12 m/min

Tailstock:
Technology:Towed tailstock with programmable Sleeve
Stroke:150 mm
Cone:MK5

Equipment/Accessory:
Chipmanagement:Chipconveyor
Coolingmanagement:Coolant pump
Toolmeasurement:Measuringarm, Renishaw RP3
Oilmistseparation:Mechanical extraction, AR Filtrazioni ARNO 3VF YF
Shaftprocessing:Manual Steady rest, ø150-300 mm
Toolholder:Misc. static and driven toolholder
Setup operations:Electronic Handwheel
Further Equipment:Automatic Door (pneumatic), Trafo, Oilskimmer
Further Accessory:Misc. Jaws and EWS Quickchangeinserts
