Lathe S1100 fully equipped digital Hans Schreiner MDB-S1100K-DIGITAL Description

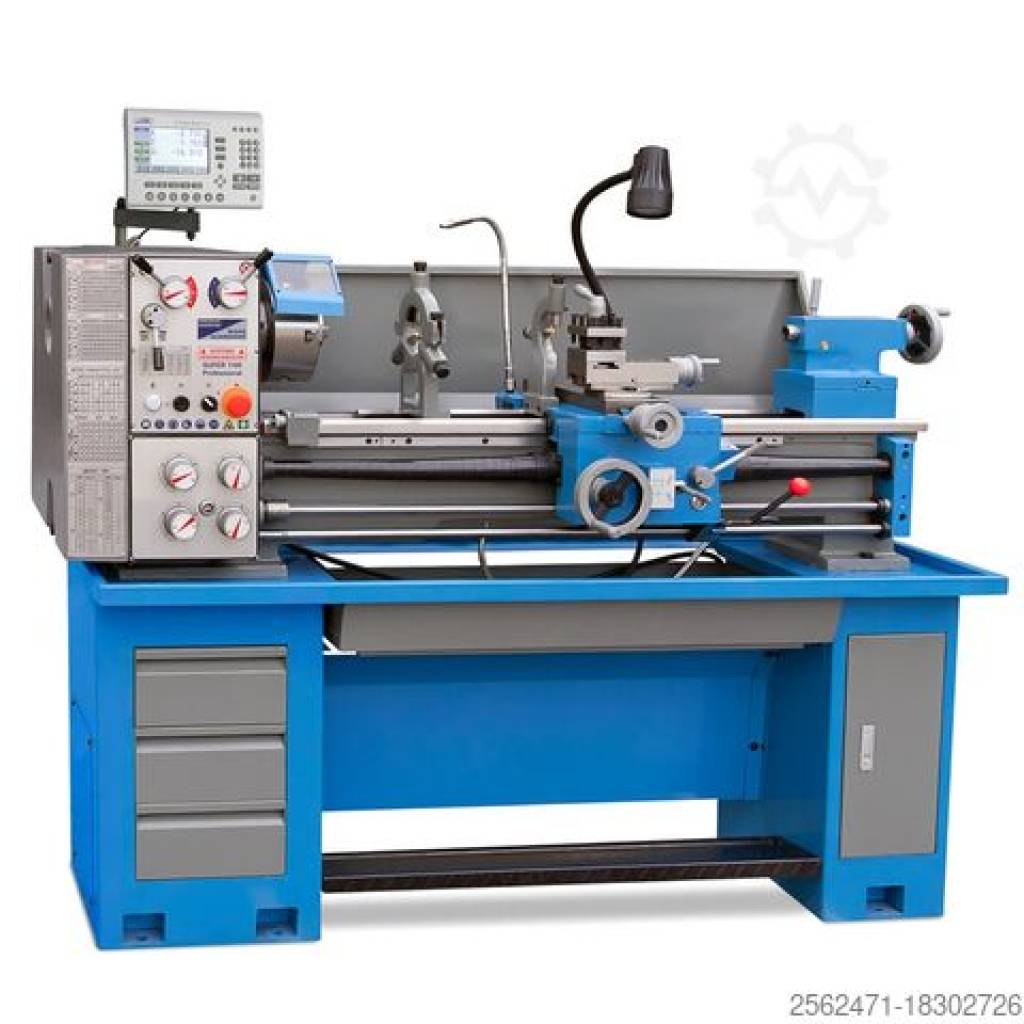

Lathe S1100 fully equipped digital
Hans Schreiner MDB-S1100K-DIGITAL
Description
Precision full gear, lead, pull, switching spindle
Lathe, bed and gear wheels hardened
and ground. Main spindle, tapered roller bearings and
V-ledges, face/top slide adjustable.
Camlock mount C4, top slide rotatable 360°.
Tailstock adjustment +/- 5 mm for taper turning,
High cutting performance, DIN acceptance protocol,
Operating and spare parts list.
Without oil filling.
Dobxsvrv Ehs Ri Tq Ieci
Standard equipment:
3-axis digital display.
Base frame
Foot brake
Coolant system
Halogen lamp
3-jaw American chuck 160 mm
4-jaw American chuck 200 mm
Faceplate 250 mm
2 steady rests
Technical data:
Center height 165 mm
Center width 1100 mm
Spindle bore 38 mm
Spindle cone MK 5
Tailstock taper MK 3
Spindle speed 65 to 1810 rpm
Speeds 18
Main motor output 2 kW S6 (1.5 kW S1)
Weight 540 kg
