Circulation/rotation Ø over bed 475 mm
Rotation/rotation Ø via cross slide 260 mm
Sledge path plan 260 mm
centre distance 1000 / 1500 / 2000 mm
power capacity 22 kW
Gear stages. m= manual / e= electric. 2 e
Spindle head DIN 55026 / DIN 55027 A6 / 6
Spindle Ø in front bearing 115 mm
spindle bore 78 / 70 mm
turning speed range (V-constant) 1 - 3.000 U/min
feed range flat 1µ - 1.000 mm/U
feed range lengthwise and thread 1µ - 2.000 mm/U
Rapid traverse plan/longitudinal 5 / 10 m/min
diameter of quill 70 mm
quill travel 120 mm
quill inner cone 5 MK

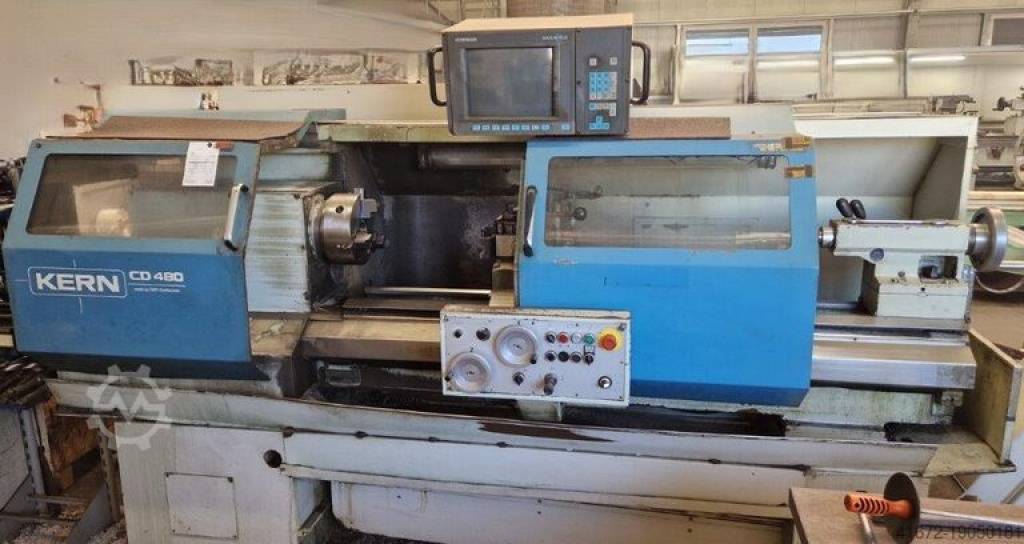

This machine is used for the production of individual parts and small batches
from simple to the most complex contours.
