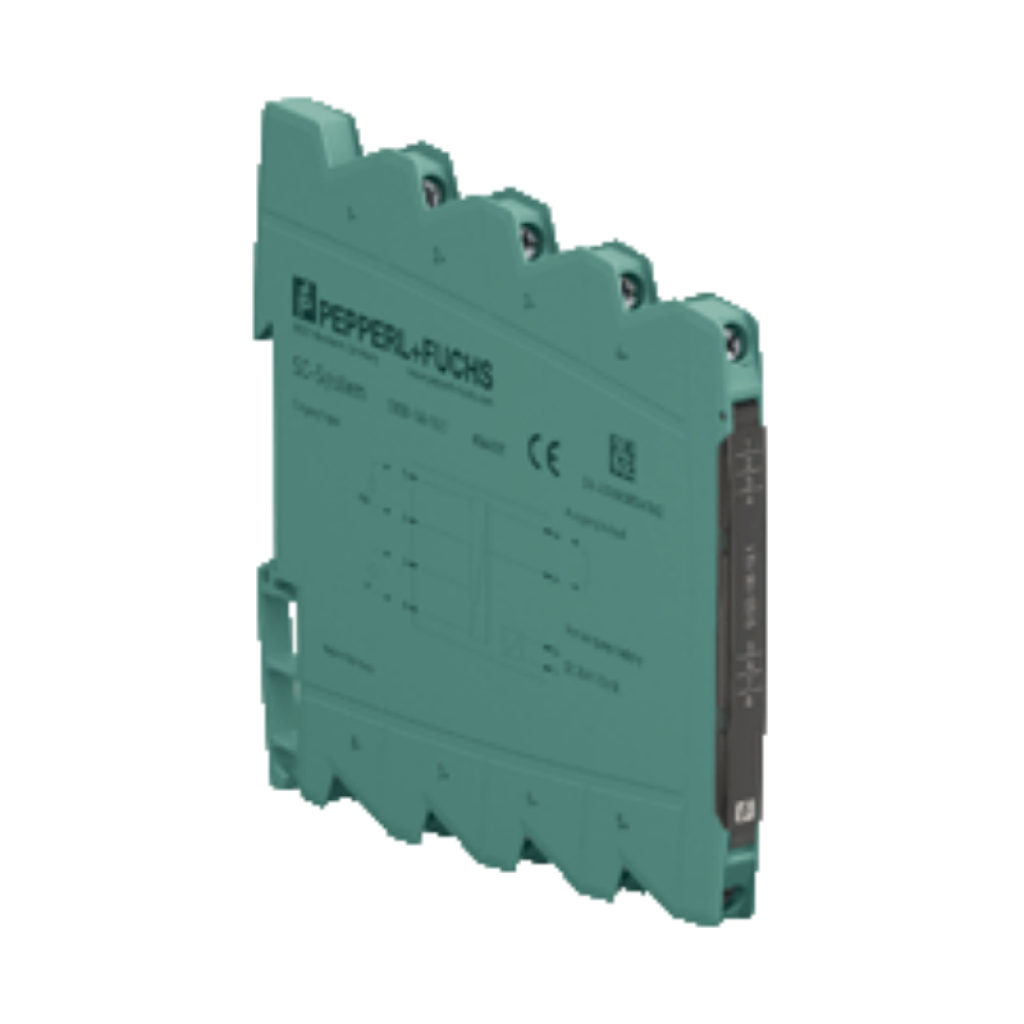

S1SD-1AI-1U Pepperl+Fuchs Isolating Amplifier Description

S1SD-1AI-1U Pepperl+Fuchs Isolating

Signal typeAnalog inputOperation timeMTBF: 536 a acc. to SN 29500
stationary continuous operating, average ambient temperature 40 ??C (104 ??F)SupplyConnectionPower Bus or terminals 1-, 2+Rated voltage16.8 … 31.2 V DCPower dissipation0.6 WPower consumption0.7 WMechanical specificationsDegree of protectionIP20Connectionscrew terminalsCore cross section0.5 … 2.5 mm2?(20 … 14 AWG)Massapprox. 70 gDimensions6.2 x 97 x 107 mm (0.24 x 3.82 x 4.21 inch) (W x H x D) , housing type S1Height97 mmWidth6.2 mmDepth107 mmMountingon 35 mm DIN mounting rail acc. to EN 60715:2001
