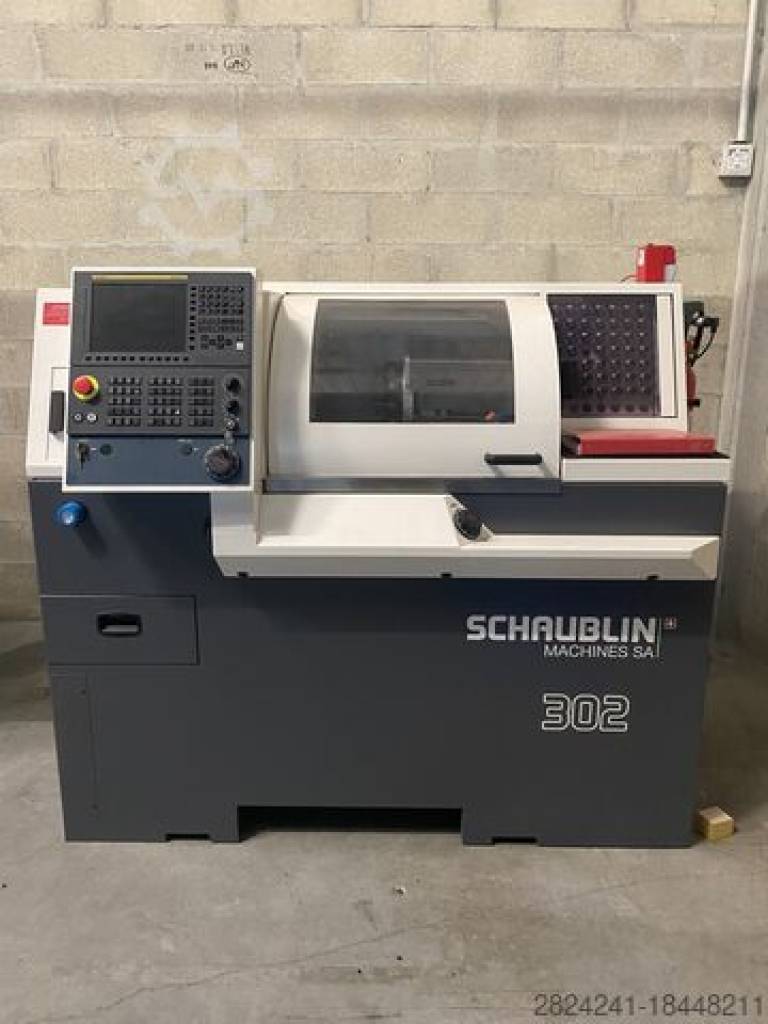

Schaublin 302 R-TM W25 Schaublin 302 R-TM Description
Schaublin 302 R-TM W25
Schaublin 302 R-TM
Description
Equipped in addition with a complementary UGV spindle, all the tools, chucks and double clamps, tool holders, chisel holders, tilting axial and radial drilling/milling heads, key sets, etc. Zero minutes of use on these elements.
Equipped with new and complete fire protection.
It is also equipped with a postprocessor developed for the occasion.
Description:
Maximum turning diameter 200 mm
Maximum turning length in collet 200 mm
Maximum distance between centers 220 mm
FANUC 0i-TF PLUS – CE
1 rotary axis C spindle
SAUTER axial VDI16 REVOLVER, 12 positions, including 6 driven positions
Maximum 6,000 [rpm]
W25 SPINDLE with integrated motor - 50 - 8,000 [min-1]
Angular positioning 0.1°
C axis resolution 0.0001°
Mechanical locking
W25 spindle nose
Chip bin
Electrical cabinet
