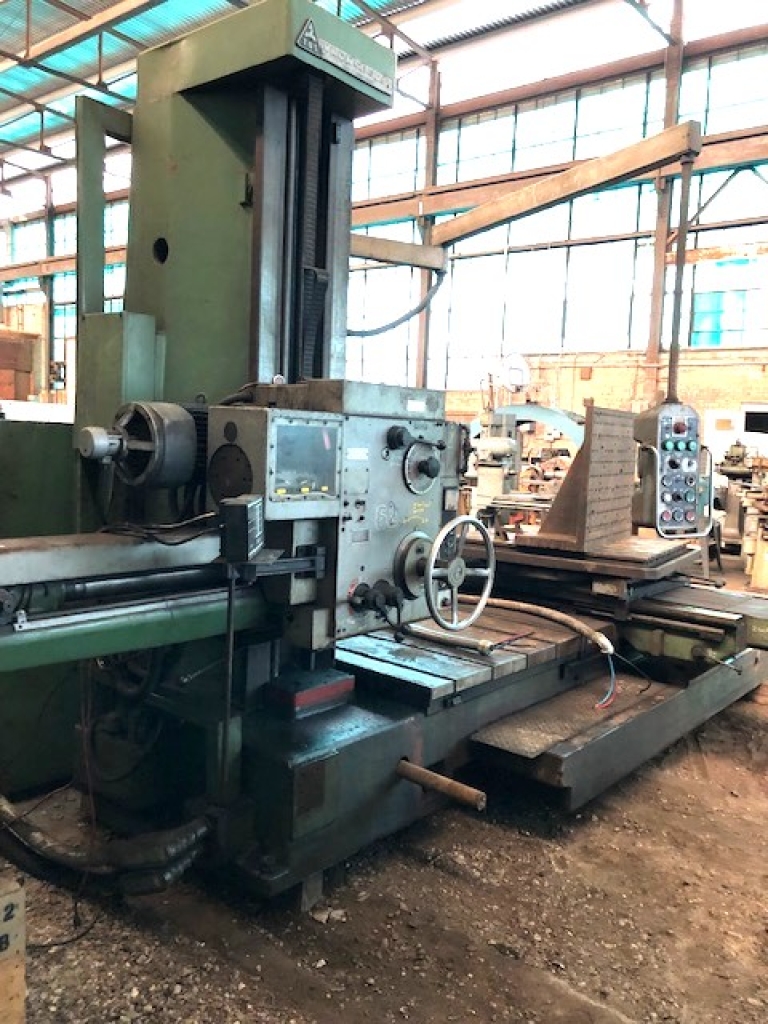

TOS VARNSDORF W9A Horizontal Boring and Milling Machine Description
TOS VARNSDORF W9A Horizontal Boring and Milling MachineTOS VARNSDORF W9A Horizontal Borer, table type new 1980s
Spindle dia 90 mm, spindle taper 40 int. spindle speeds 28 to 1400 rpm Spindle travel Z axis 710 mm. Spindle to table Y axis 0 to 1120 mm
Clamping surface of T slotted rotary table 1000 x 1120 mm, Cross travel of table, X axis 1250 mm, longitudianl travel , W axis 1400 mm. Max weight of workpiece on table 3000 kgs.
Rapid traverses 2400 mm/min
Main spindle motor output 7.5 kW @ 1455 rpm.
Power input 10KVA.
Machine weight approx 11,200 kgs.
