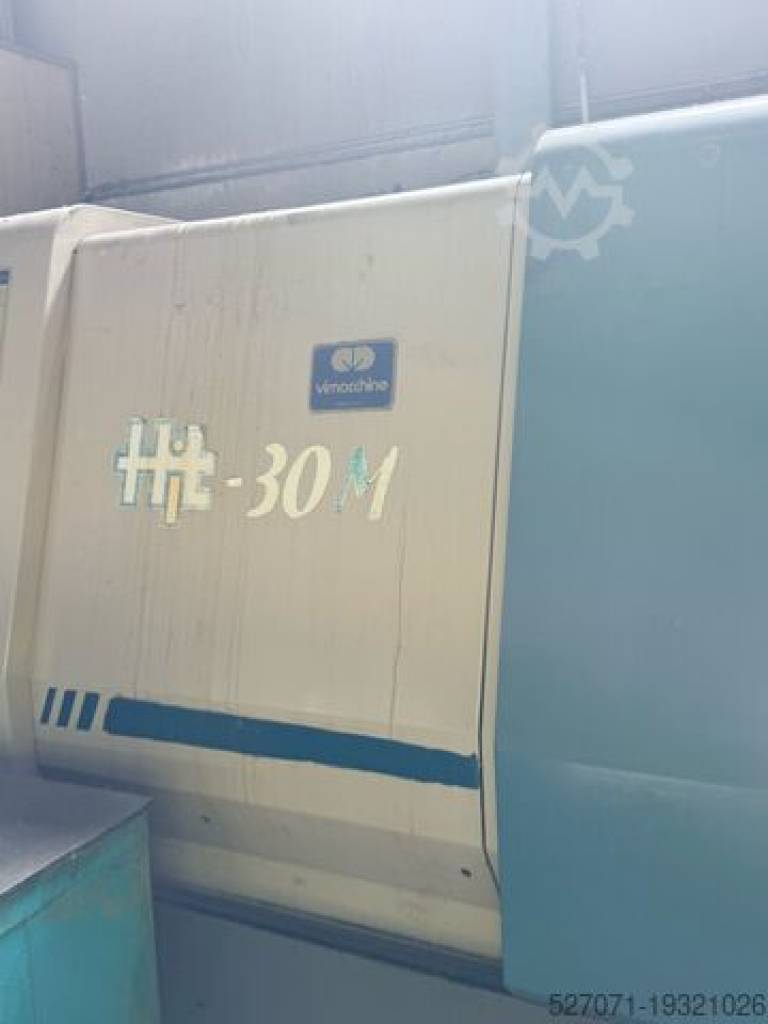

Used CNC Lathe Hyundai 2 x Hit-30M

Information

Used CNC Lathe Hyundai 2 x Hit-30M Description

Used CNC Lathe

Hyundai 2 x Hit-30M
Description
Hyundai Hit 30M CNC Lathe With Large Amount of Tool Holders and Driven Tooling Package.

Driven tooling
Simens sinumerik control
Kitagawa 12” 3 Jaw chuck B-212
Max Rpm: 3300
Max swing: 580mm
Swing on the carriage: 580mm
Swing on the cross slide: 400mm
Max Cutting Dia: 334mm
Max cutting length (shaft): 990mm
Standard cutting dia: 290mm
Distance between section of main spindle and section of turret: 146-1136mm
Max bar work capacity: 90mm
Centre height (from ground): 1050mm
Max support weight: 1000kg
Main spindle nose: ASA A2-8
Main spindle taper: 1/16
Dcebxjwqyhco Ri Tq Iji
Spindle bore: 104 dia
Speed range of main spindle: 25-2500rpm
Speed variation range of main spindle: Automatic speed variation
Type of turret: VDI turret
Number of tools: 12
Index time: 0.52 sec/ 1 step
Tool size (outer dia): 25 x 150mm
Tool size (inner dia): max 50mm
Index coupling dia: 200mm
